Customizable Borosilicate Glass Chemical Jacketed Lab Reactor 220V for Precise Temperature Control

Feature : Customizable

Material : Borosilicate Glass

Motor Power : 140W

Voltage : 220V

Lid Diameter : 265MM

Type : New

warranty : 1 year

name : jacketed lab reactors

Brand Name : Sanjing

Model Number : PGR-10

Certification : ISO9001

Place of Origin : Nantong, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100SETS/MONTH

Delivery Time : 5 working days

Packaging Details : Polywood Case

Contact Now

Glass Chemical Jacketed Lab Reactors 1L 5L 10L 20L 50L 100L 150L 200L
Laboratory Glass Chemical Jacketed Reactor

The glass reactor incorporates multiple ingredients, enabling engineers to determine ingredient reactions under different applications. Constructed from high-quality borosilicate glass that is resistant to chemical reactions, it can withstand high temperatures and pressure.

In chemical engineering, a jacketed vessel is designed for temperature control of its contents using a cooling or heating "jacket" around the vessel through which temperature-controlled fluid circulates. Agitation can be used in jacketed vessels to improve fluid property homogeneity.

Main Features
  • GG17 high borosilicate glass ensures excellent chemical and physical properties
  • Heating experiments with hot oil circulation through jacketed glass
  • Low temperature experiments with cold fluid circulation
  • Quick heat removal through water cycling in jacketed glass
  • Large bottle mouth design for easier cleaning
  • Suitable for use as distillation syntheses device
Product Model Volume (L) Neck No. on Cover External Diameter of Inner Vessel (mm) External Diameter of Outer Vessel (mm) Cover Diameter Vessel Height (mm) Motor Power (w) Vacuum Degree (Mpa) Rotation Speed (rpm) Torque (Nm) Power (V) Dimension (mm)
PGR-3 3 4 150 200 150 300 40 0.098 50-1400 0.27 220 320*350*900
PGR-10 10 6 230 265 450 140 0.098 50-600 2.23 220 650*650*1900
PGR-50 50 6 365 410 265 850 140 0.098 50-600 2.23 220 800*600*2300
PGR-100 100 6 460 500 340 950 250 0.098 50-600 3.98 220 1000*700*2700
PGR-200 200 6 600 650 340 1200 750 0.098 50-600 6.37 220 1200*900*3200
Product Details

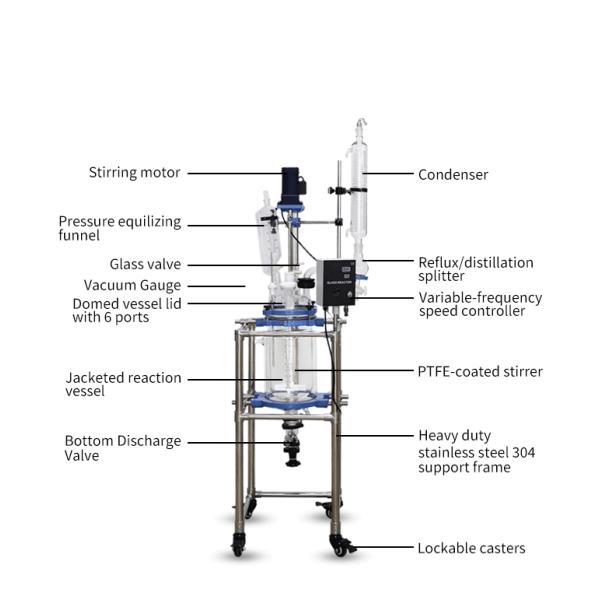

Customizable Borosilicate Glass Chemical Jacketed Lab Reactor 220V for Precise Temperature Control
Packing and Delivery

Packaging

  • Glass parts wrapped with foam and carton, main body portion packed in wooden cases
  • Both neutral and customized packaging available

Shipping

  • International Express services including DHL, UPS, TNT, EMS
  • Option to use your own shipping agent
Customizable Borosilicate Glass Chemical Jacketed Lab Reactor 220V for Precise Temperature Control
Our Factory
Customizable Borosilicate Glass Chemical Jacketed Lab Reactor 220V for Precise Temperature Control
Our Service
Could you do customized for us?

We are a manufacturer that can provide all kinds of customized services.

How to shipping the replacement parts?

We will choose suitable shipping methods based on actual situation. Small parts are shipped by Express.

How to solve the problem of your equipment?

Please email us the problem details; pictures or video are helpful. We will diagnose the issue and provide solutions. Broken parts are replaced free during warranty period.

The period, scope and condition of the warranty.

(1) 1-year warranty from shipping date from China. Manufacturing and quality issues covered with replacement and maintenance services.
(2) Transportation damage covered by seller.
